Magnetic 15W (Compatible Magsafe) Wireless Car charger ( iPhone 12 Series )

Magnetic 15W (compatible Magsafe )Wireless Car charger

Recommended for :: iPhone 12 / 12 Pro / 12 Pro Max


Specifications:

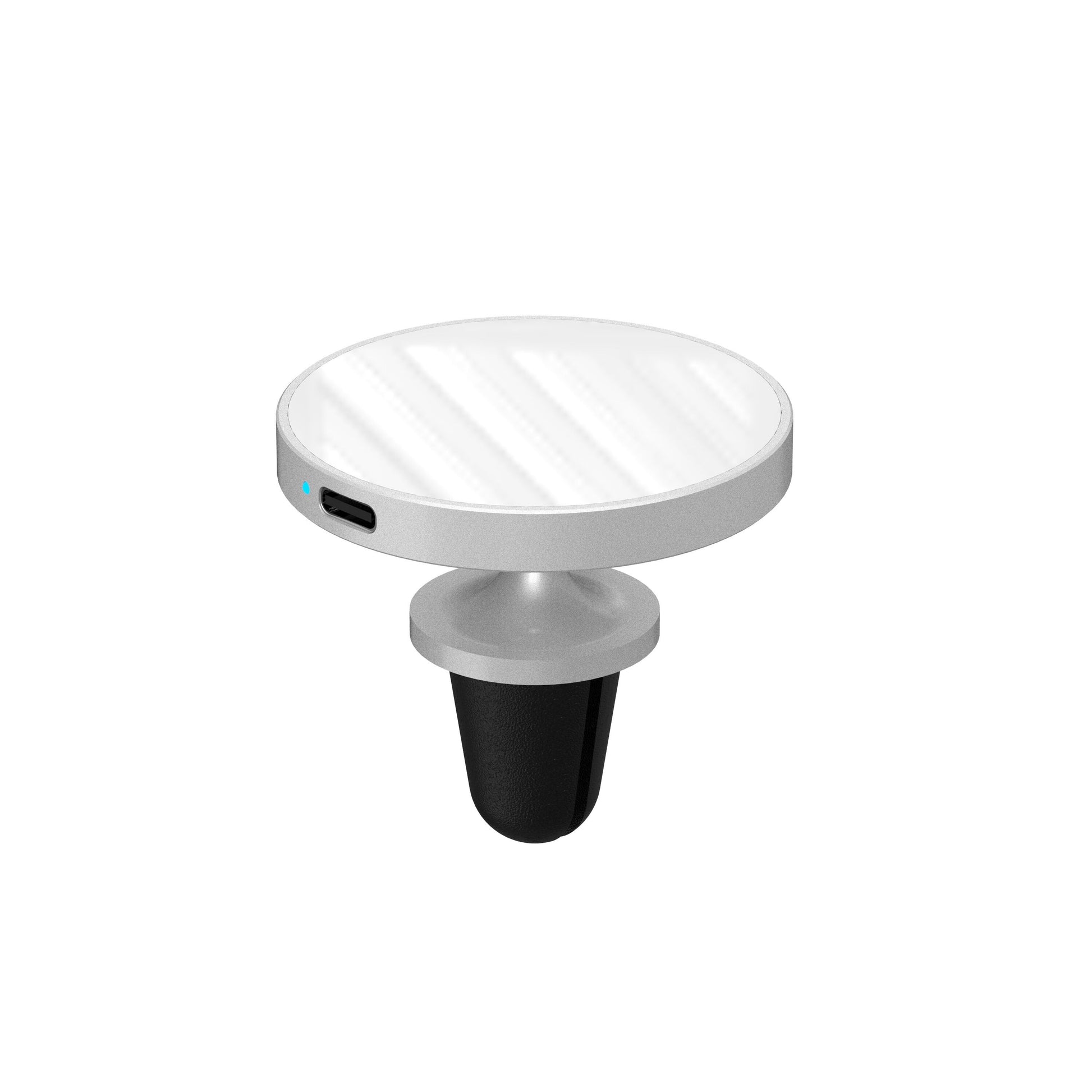

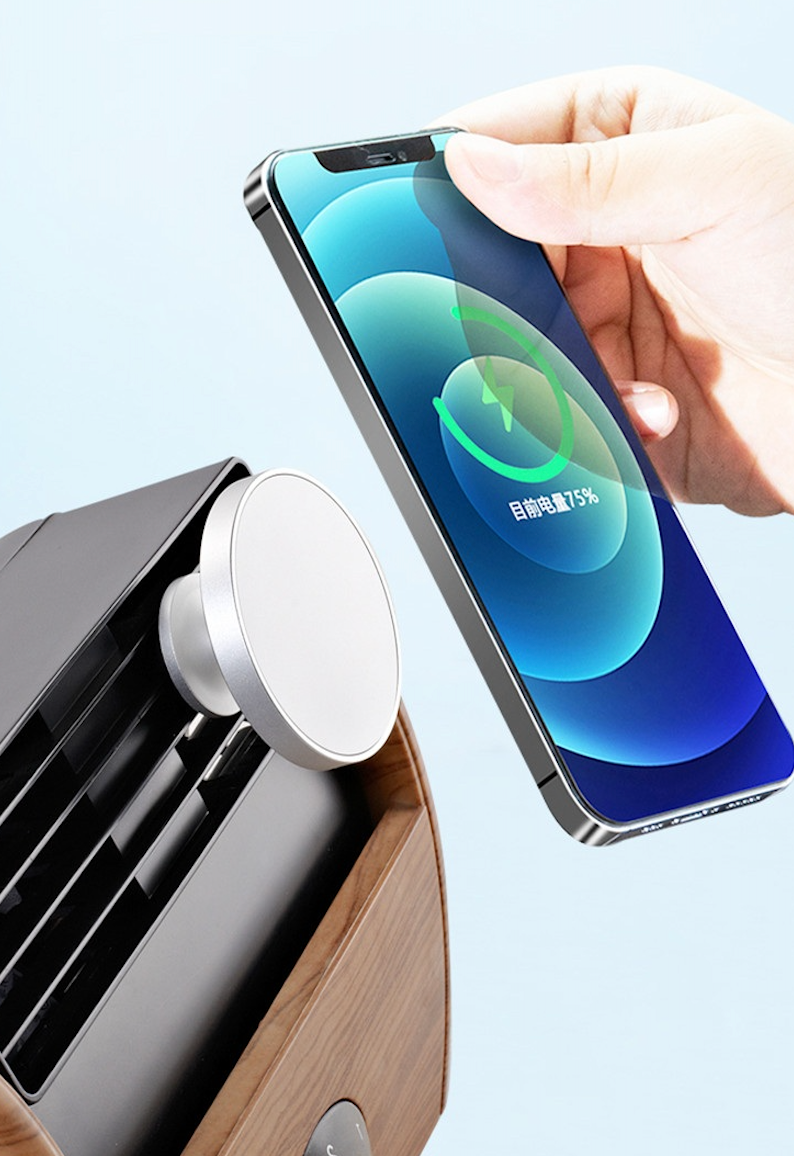

Magnetic car charger.

Input: 5V/2A 9V/2.22A 12V/1.67A

Output: 5V/1A 9V/1.1A 9V/1.67A

Power: 5V/7.5W/10W/15W

 (QC2.0/QC3.0/PD2.0 support)

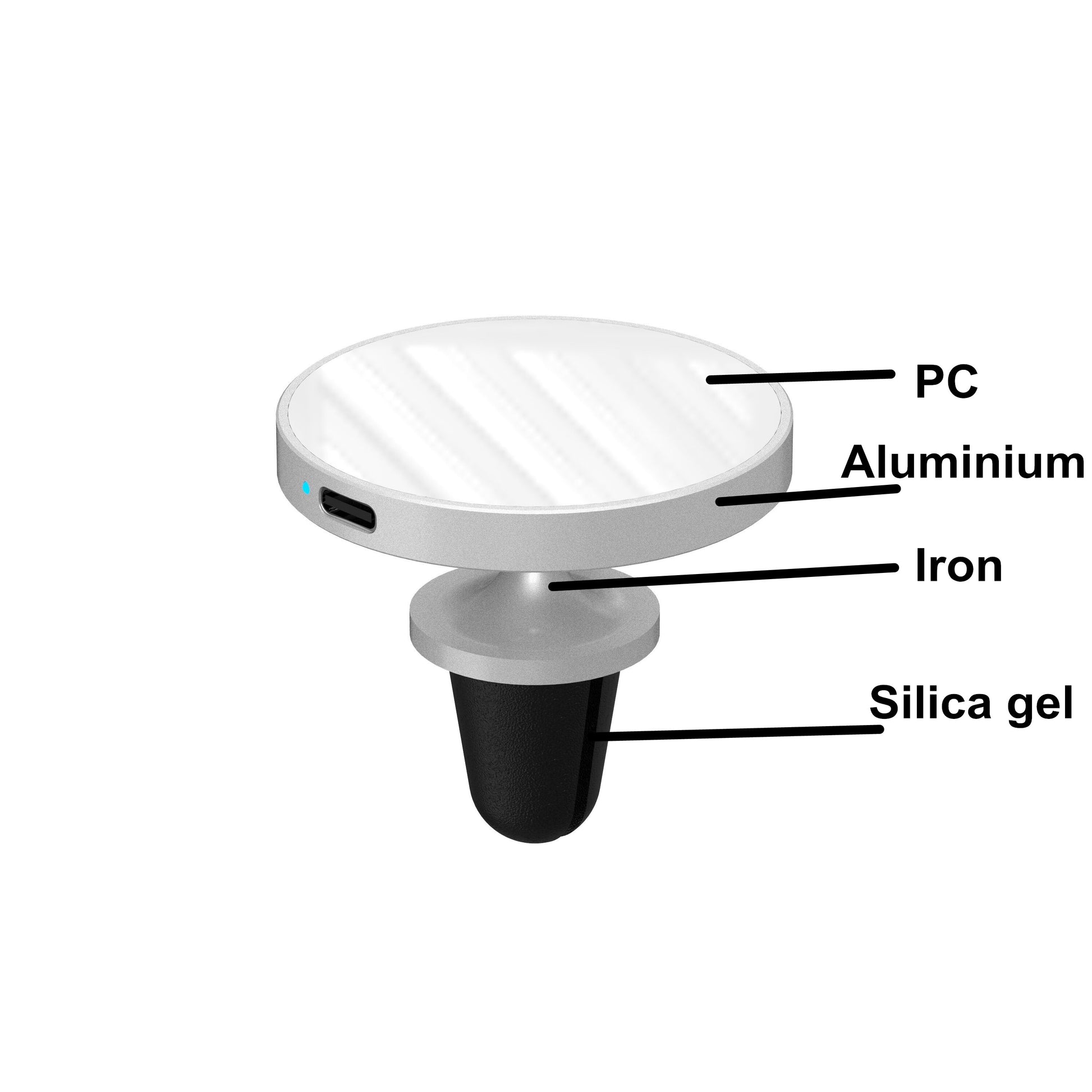

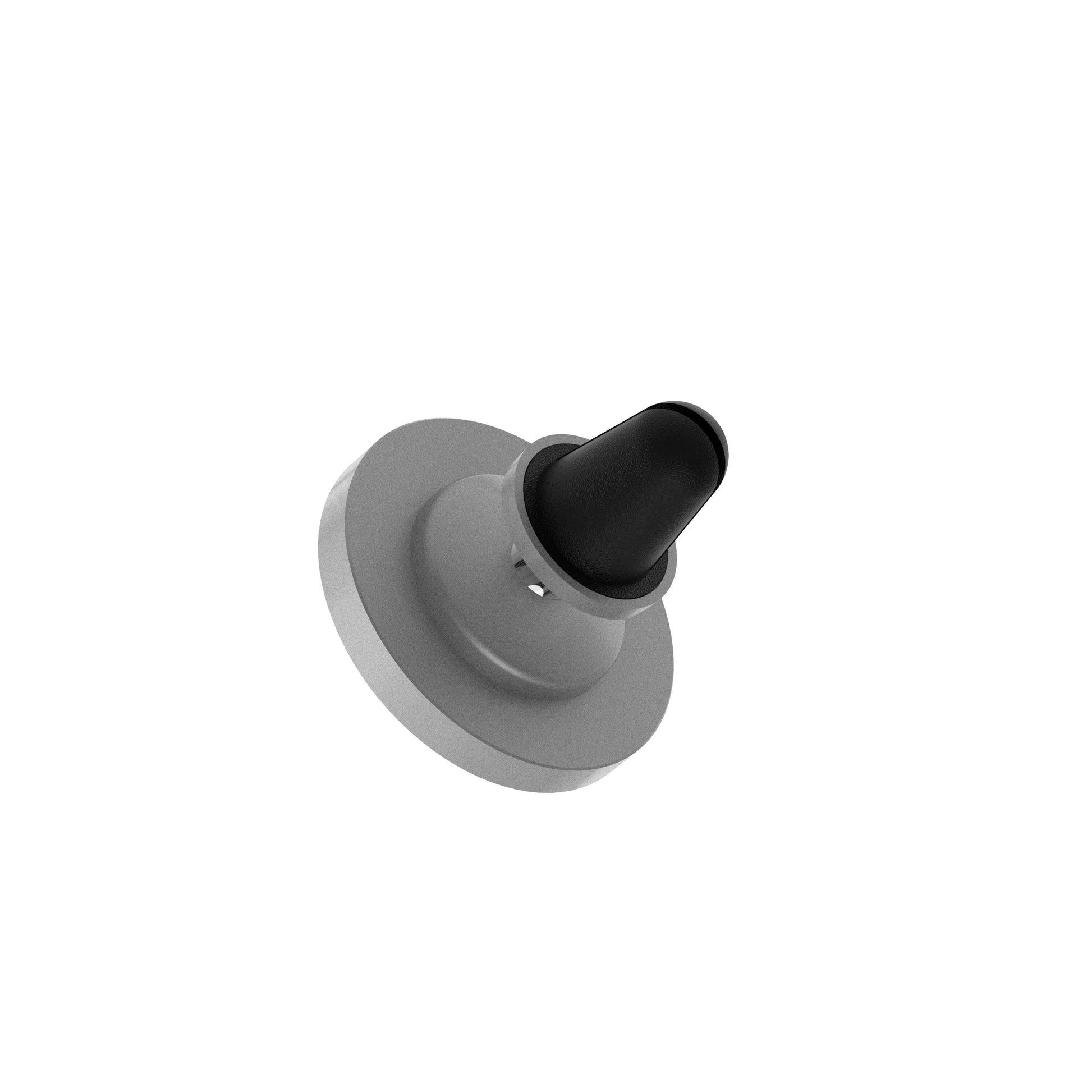

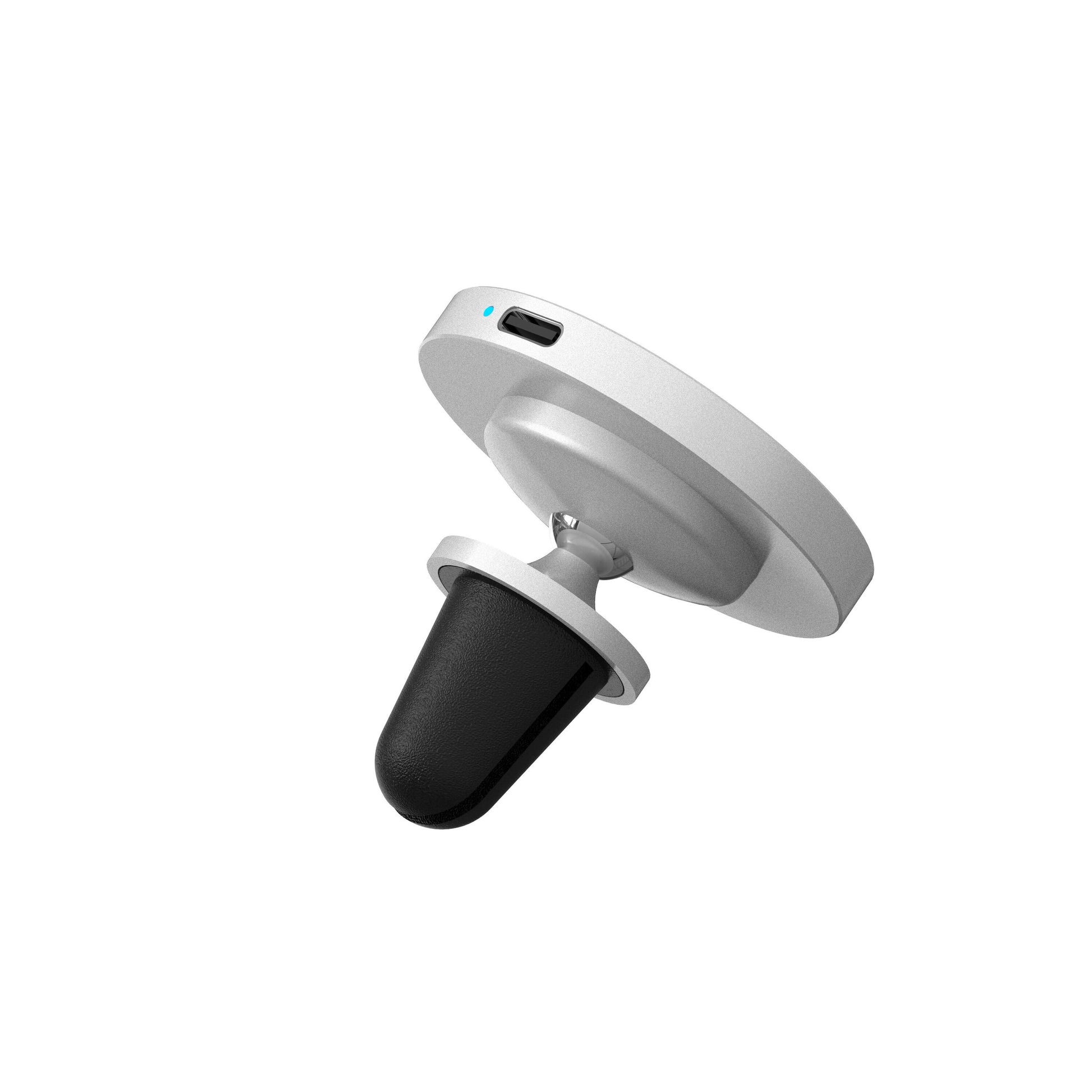

Material: Aluminum+plastic+ABS size:57*51mm
package: white box

Dimension:Ø57*51mm







1. Description

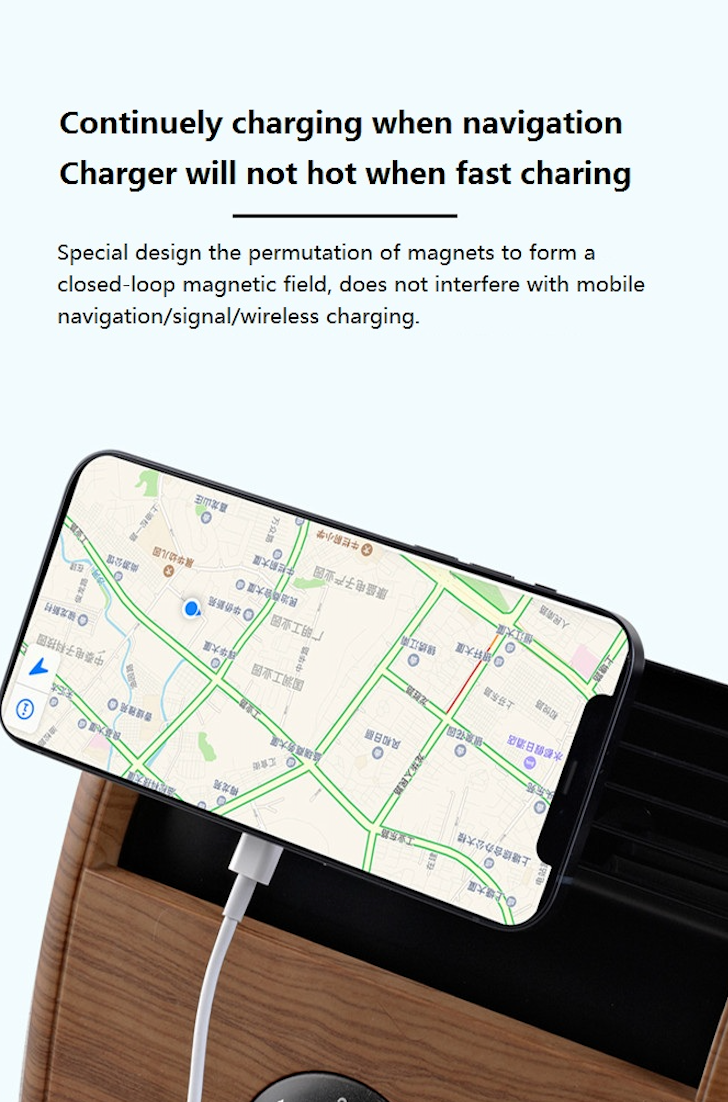

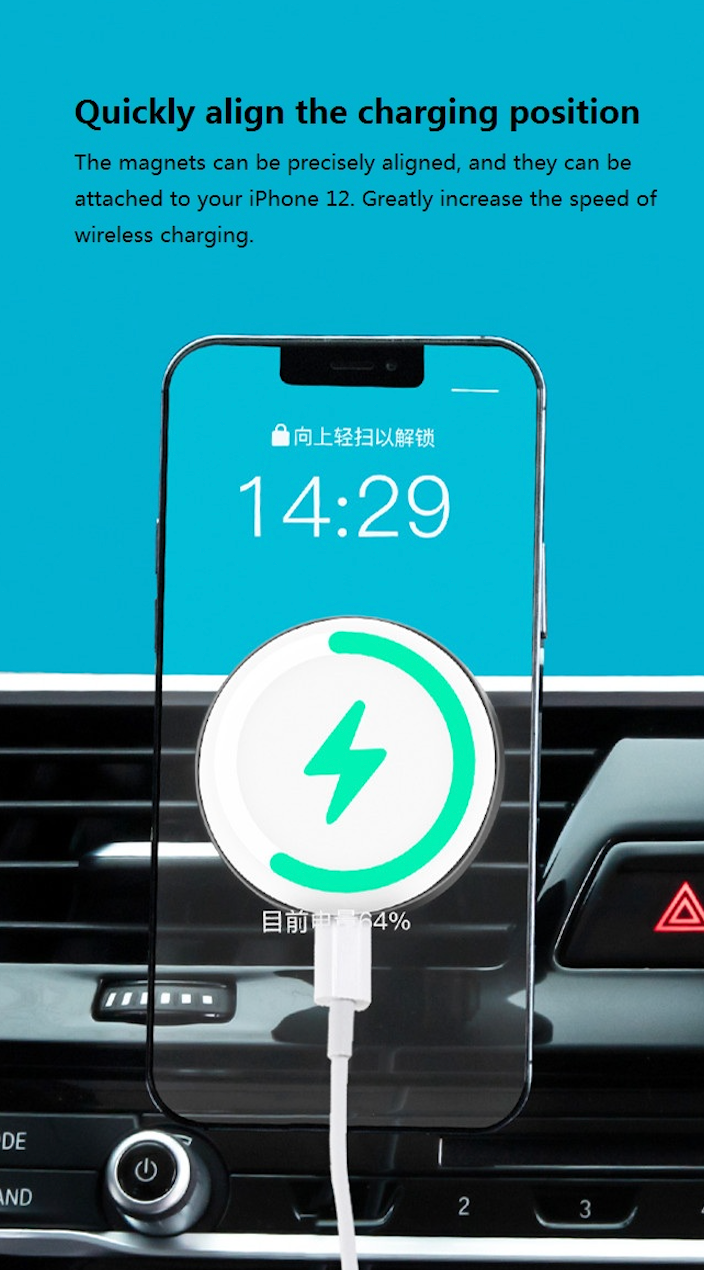

The 15 W single coil wireless charging transmitter is a digital demodulation wireless charging solution based on electromagnetic induction technology and follows WPC wireless charging alliance protocol, QC2.0/QC3.0/PD recognition capability of the transmitter, Compatible WPC-Qi V1.2.4 standards, Support for two-way communication from launch to reception, Compatible with Qi-BPP/ Samsung wireless fast charging standard / Apple wireless fast charging standard / Huawei wireless fast charging standard / Xiaomi wireless fast charging standard, Can provide 5 W/7.5W/10W/15W output power (charging power depends on the receiving end protocol). 110 KHz-205KHz, Operating frequency 2 mm-6mm. must be maintained for transmitter and receiver coils

2

2. Basic parameter

Programme:

D9200+D9015

Electricity:

5V( Patch)/9 V/12V( Fast Charge) Adaptive

Standby power:

W <0.1

Overpressure protection:

10.4 V

Underpressure protection:

4.0 V

Overcurrent protection:

5V-2A,9V-1.6A

Full load input current:

Different range full load current is different, based on the actual measurement

Output short circuit protection:

Yes

Conversion efficiency:

MAX 84 per cent

Operating temperature:

<40°(related to mobile phone and wireless charging distance and receiver performance)

Temperature protection:

70°(over 70° above coil trigger protection, temperature down to 40°(3 seconds)

FOD:

One dollar coin detected

Mobile compatibility:

The product charges different brands of wireless charging mobile phones (Apple, Samsung, Xiaomi), charging QI devices can be filled, full of long lights, charging power to meet the QI charging standards of 5 W (ordinary QI equipment)/7.5 W equipment charging power
(I8/I8P/IX)/10W (Samsung Express)

EMI radiation

Radiation allowance ≥5 dB by EN55022:1998,ClassB test

3

ESD

ESD voltage: contact ±4 KV, air ±8 KV; ESD times: positive Negative voltage 10 times each; product function is not abnormal after test, accord with CLASS B Level requirements

Indicator:

Standby

Charge

Full

Error reporting

Foreign foreign bodies

Blue light

OFF

O N

ON

OFF

OFF

Red

OFF

OFF

ON

ON

Flash

RoSH of China (EU ROHS2.0 Directive)

RoHS10 ROHS2.0 Directive/EU

3.Output characteristics

3.1Output characteristics
Output voltage, output current meet the following criteria:

Project

Performance

Remarks

Output voltage

5W

+5 Vdc

10W

+9 Vdc

QC2.0/QC3.0/PD/DC Source

15W

V QC +12

QC2.0/QC3.0

Output tolerance

±5%

Maximum output current

5W

1A

10W

1.1 A

QC2.0/QC3.0/PD/DC Source

15W

1.25 A

QC2.0/QC3.0

Minimum output current

5W

0A

10W

0A

QC2.0/QC3.0/PD/DC Source

15W

0A

QC2.0/QC3.0

4

3.2 Output protection
3.1.1Output short circuit protection

In the case of the receiver output short circuit, the transmitter stops working, and when the receiver is removed, the transmitter will return to normal operation.

3.1.2Output over current protection
After triggering the over current protection, the transmitter stops working, and when the

receiver is removed, the transmitter will return to normal operation.

3.1.3Over-temperature protection

When the D9100 temperature of the transmitter is higher than 80°Cor the external NTC temperature is higher than 60°C, the transmitter stops working and the temperature decreases to normal condition. After the receiver is removed, the transmitter returns to normal operation.

3.1.4Metal detection
When a metal larger than the size of a coin is detected on the transmitter coil, the transmitter stops

working and after the metal is removed, the transmitter returns to normal operation.

3.1.5Foreign body detection

A coin-sized metal object is inserted between the transmitting coil and the receiving coil under normal operation of the transmitter and receiver. The transmitter must be able to stop working within 2 minutes (the receiver protocol version needs to be WPC1.1 above).

3.1.6Vertex Offset

under the normal operation of the transmitter, the receiver coil position is offset relative to the transmitter coil, which causes the transmitter coil voltage to be too high, and the transmitter must be able to enter the current limiting mode to protect the transmitter.

5

4.

Environmental conditions

4.1Temperature
4.1.1 °Cto 40°C0
4.1.2 storage temperature :-25
°Cto 80°C
4.2
Humidity
4.2.1Humidity :-10% to 70%RH work
4.2.2Storage humidity: to 80%RH 10 per cent

Performance testing (Performance test)

5.1Functional testing

5.

Test project

Test results

Decision Results

Standby

The red light is not on, the blue light is not on

OK

Charge

The red light is not on, the blue light is on

OK

Full

Red light, blue light

OK

Error reporting

The red light is not on

OK

Foreign foreign bodies

The red light is flashing and the blue light is not on

OK

Temperat ure

45° around

OK

Efficiency

83.5%

OK

6

Project

Name of equipment

Manufacturing

Model

1

AC power source

Chroma

6120

2

Oscilloscope

Tektronix

TDS1002B

3

Electronic load

TET

T3515

4

Multimeter

FLUCK

87III

5

Dynamometer

Chroma

2100

6

Thermograph

LUTRON

TW-902C

7

Plug lead bend test machine

Hsin

LX-817

8

Salt spraying tester

Hsin

LX-8827B

9

Vibration table

Technical experiments

FZD-25

10

Drop test bed

Self-made

11

Digimatic caliper

Shanghai Gauges

mm 0-150

6.

Test Equipment List

7.

MECHANICAL REQUIREMENT:

7.1Enclosure:
Shell Size: L *W *H =57 mm *57mm *51.13mm;

The power supply size:L *W *H =57 mm *57mm *51.13mm;

8.MECHANICAL SPECIFICATIONS8.1Dimension:

L *W *H =57 mm *57mm *51.13mm,
